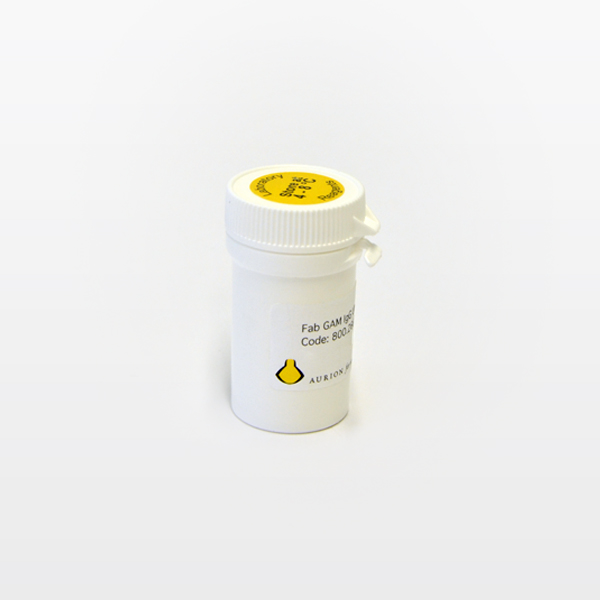

F(ab') fragment of Goat-anti-Mouse IgG (H&L) Ultra Small

Imprimir

Referência 800.266

Tamanho : 0,6ml

Contactar o distribuidor local :

Telefone : +1 850 650 7790

Marca : Aurion

Solicitar mais informações

Contactar o distribuidor local :

Telefone : +1 850 650 7790

Datasheet (US)

Aurion Ultra Small Immunogold Reagents are prepared with sub nanometer gold particles. These particles have far less influence on the adsorbed antibodies or detecting molecules, and consequently the conjugates behave as though they are uncoupled. In conjunction with the highly efficient and easy-to-use R-Gent SE-Intense and SE-EM silver enhancement reagents, the Ultra Small Immunogold Reagents are the best choice for any application.

Introduction to ultra small gold nanoparticles

Reduction of the gold particle size provides Ultra Small Immunogold Reagents with fundamentally different characteristics when compared with conjugates built around larger particles. While the Conventional Immunogold Reagents can be thought of as particles coated with proteins, Ultra Small Immunogold Reagents are proteins coated with one or more gold particles. With this structure, both the overall size of the conjugates, as well as steric hindrance are decreased.

The table below lists a few physical characteristics of gold conjugates.

Particle diameter	#Au atoms	MWt. (daltons)	#particles /ml	#Ab /(part.)
0.8 nm	15	3·10^3	5·10^15	0.1-1?
6 nm	6500	1.3·10^6	2.4·10^13	1-2
10 nm	30·10^3	6·10^6	5·10^12	7-12

If you have any questions about our products you can go to our page dedicated to your questions.

Read FAQ Contact us

The small gold particles also have a tight particle surface curvature which makes it less likely that a structured water dipole layer will build-up around the gold particles. Hence, the hydrodynamic radius of the ultra small gold colloids is reduced. Finally, small gold particles carry less net negative charge; thus, they undergo less charge determined repulsion when approaching the sample surface.

Aurion offers Ultra Small nanoparticles with an average gold particle diameter of 0.8 nm or less. These ultra small gold nanoparticles can be visualized directly in high angle annular dark-field-scanning TEM. However, the gold signal is normally visualized after increasing the particle diameter with silver enhancement. The reagents can be used in electron and light microscopy as well as in blotting experiments. The universal applicability makes it easy to compare results obtained with different procedures.

Product Description

AURION Ultra Small Immunogold Reagents contain 60-80 µg of specific protein/ml for IgG conjugates. F(ab’)2, Fab and biotinylated albumin conjugates contain equimolar amounts of conjugated protein. The average gold cluster diameter is less than 0.8 nm.

AURION Ultra Small Immunogold Reagents are used in conjunction with AURION R-Gent SE-EM or R-Gent SE-Intense silver enhancement reagents, developed for electron microscopy and light microscopy/immunoblotting, respectively.

The reagents are supplied in PBS with 1% Bovine Serum Albumin and 15 mM NaN3.
The activity of each lot is determined using a dot-spot test system as described by Moeremans et al., J. Immunol. Methods, 74, (1984), 353.

The products are available in two package sizes:
Regular package: for 1200 grids or 600 slides
Small package: for 480 grids or 240 slides.

Application Instructions

Detailed information is provided in the package inserts

Electron Microscopy

Post-embedding Labeling
Incubate thin sections by placing grids on drops of reagent arrayed on a sheet of Parafilm™. The use of nickel grids is recommended, especially if silver enhancement procedures are intended.
Pre-embedding Labeling
Float specimens in dilute reagent on a rocking table.
There is a special word on pre-embedding in the “sharing our knowledge” section of this website as well as a Newsletter (free copy on request). The incubation protocol on pre-embedding can be found in the section “the Aurion method.”

Light Microscopy

Slide or Coverslip Labeling
Apply a few drops of dilute reagent to cover the specimen.

Recommended Incubation Solution:
PBS,
(10 mM Phosphate buffer, 150 mM NaCl)
0.1-0.2 % AURION BSA-c™
15 mM NaN3
pH 7.4

Note on background prevention:
A special AURION NEWSLETTER dealing with the topic of background is available on request.

A special AURION NEWSLETTER describes the use of AURION Ultra Small Immunogold Reagents in pre-embedding labeling. A free copy is available on request.

Specificity

Aurion offers the widest range of Ultra Small Immunogold Reagents. The most used reagent types are available as intact IgG, F(ab’)2 and Single Fab conjugates. Please refer to ‘Ordering Information’ for a complete list of reagents available.
AURION Ultra Small Immunogold Reagents are prepared using the highest quality antibodies or binding agents available. All antibodies are immuno affinity purified and immuno cross-adsorbed to reduce non-specific interactions.

Storage

AURION Immunogold Reagents have a guaranteed shelf life of 18 months from the date of quality control analysis.
The products should be stored at 4-8°C. Freezing is not recommended.

Order everything you need for your lab online

With high-quality lab chemicals, you can fully access the potential of ultra small gold nanoparticles. Aurion, a name synonymous with excellence, offers a wide range of products, including USGNPs and signal-to-noise immuno-enzymatic solutions, all tailored to meet the exacting standards of modern laboratories.

Follow the link on antigenicity specificity for an overview and ordering information:
► Anti-Rabbit IgG Ultra Small
► Anti-Mouse IgG Ultra Small
► Anti-Mouse IgG + IgM Ultra Small
► Anti-Mouse IgM µ-ch Ultra Small
► Anti-Mouse IgG xRat Ultra Small
► Anti-Rat IgG Ultra Small
► Anti-Rat IgG xMouse Ultra Small
► Anti-Human IgG Ultra Small
► Anti-Goat IgG Ultra Small
► Anti-Biotin Ultra Small
► Streptavidin Ultra Small
► Anti-Guinea Pig IgG Ultra Small
► Anti-Sheep IgG Ultra Small
► Anti-Digoxigenin Ultra Small
► Anti-Chicken Ultra Small
► Anti-FITC Ultra Small
